Solutions

This system will be more effective under KNX technology adopted with ability to control On/Off or even Dim corresponding to sensor measurements such as presence detector checking zone occupation or brightness sensor to balance between natural light through building and artificial light generated etc.

Lighting System comprises of:

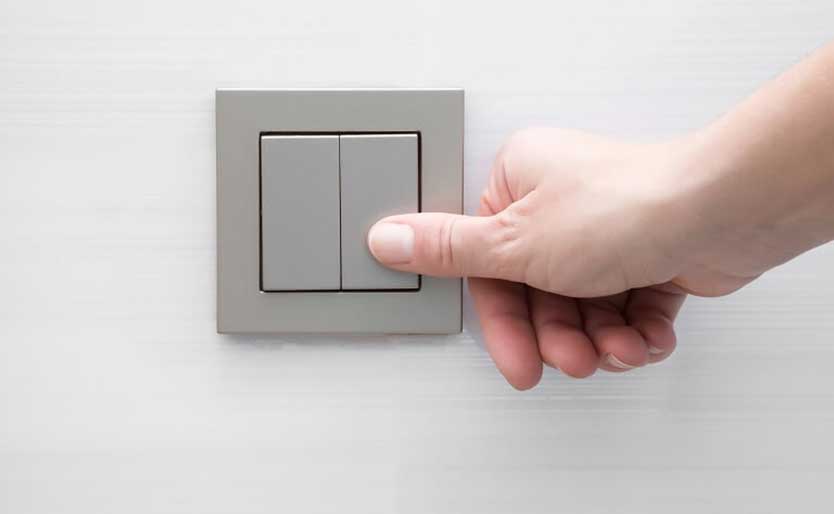

• On/Off Switch
• Dimmer
• RGBW
• Tunable White
• Constant light
  Lamp with brighter when less natural light. In opposite, lamp with less brightness when more natural light into building. This is to maintain brightness level as specified, for example 500 lux.
• Brightness measurement

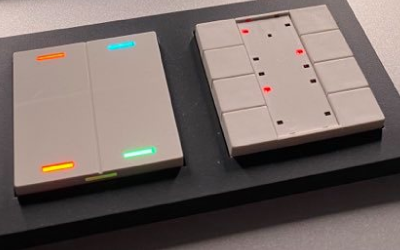

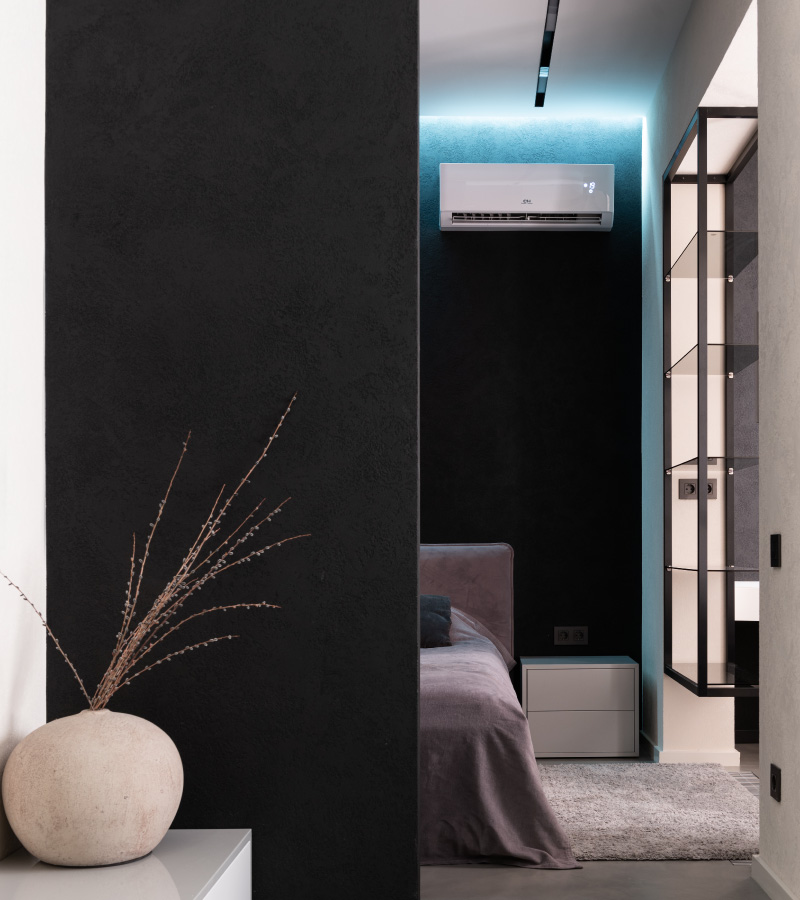

Indoor air control is now able to control not just temperature, humidity which is basically from air conditioner, but ventilation and CO2 control are in addition. Wall-mounted switch with displayed screen will help user to see updated status of air conditioner being used.

Sensor technology has been much more developed in air quality measurement. Nowadays, Air conditioning room using split type A/C might contain carbon dioxide over standard. Ventilation fan is simply introduced to exchange fresh air into closed air conditioning room.

Curtain & blinds for door & window driven by electric motor and controlled by switch either communicating via KNX bus or conventional household electricity. Furthermore, they can be controlled by measurement sensors for example blinds to fully open once high windy detected while windows open and the blinds close. This system comprises of:

• Curtain
  Selection of fabric cut hold by rings and runners sliding along specific designed rail by electric motor and belt hidden inside the rail. The rail can be bent to suit window and door line. Rail divided into 2 types, rectangle section and circular section.


• Roller, Roman and Venetian Blinds
  Suitable electric motor installed inside driven tube or rod to control up/down or open/close of it. The updated blinds position is transmitted to controlling device presented as percentage position.


• Roof Curtain
  This is suitable for glass roof focusing on introducing natural light into the building. With brightness sensor, it can be automatically open once low brightness outside of the building detected in case cloudy or in the sunshade area.

Opening roof for sun light in early morning and late afternoon for outdoor activity is getting more taste and relaxation for members. It can be controlled by electrical switch or mobile devices together with senser detection to expand the roof when raining or to retract the roof when strong windy detected for safety.

This gate is mostly in front of your parking garage and everyday used. To control with this technology can be much more comfortable and flexible. Status of the gate either Open or Close transmitted to all controlling devices.

One advantage of KNX technology is to collaborate sensors with electrical devices. Meters are to measure the usage of electricity and water suply which can be shown as realtime or graph for easier understanding. Sensors and metering currently in use are.

• Brightness sensor
• Presense sensor
• Door/window magnatic sensor
• Temperature sensor
• Humidity sensor
• Wind speed sensor
• Rain sensor
• CO2 sensor
• PM2.5 sensor
• Weather station, integrating multi sensors
  wind speed sensor, rain sensor, outdoor brighness sensor & detect sun position
• Multi-sensor, one device may contain more sensors.
• Electrical consumtion meter
• Water supply consumtion meter

While door/window magnetic sensors & presence sensor keep reporting status to the system. In addition, their collaboration could create the intrusion detection system. Security devices such as fire detection, gas detection, alarm system and so on are able to communicate under the same system. They detect and then report or notify to all devices such as phone, tablet or desktop PC.
